SDN DeviceNet Series

As a member of the Open DeviceNet Vendors Association (ODVA), Sola/Hevi-Duty has designed two power supplies specifically for DeviceNet applications. Sola’s SDN DeviceNetTM models meet ODVA specifications for power supplies for either Thin or Thick cable applications.

The SDN4-24-100LP has the highest output current possible while still meeting the requirements for NEC Class 2.  This is necessary for installations to meet the National Electrical Code (NEC) or the Canadian Electric Code (CE code) without the need for secondary fusing.

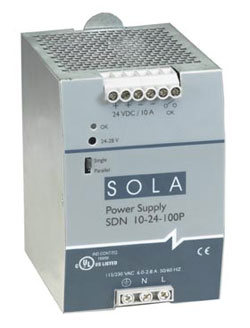

The SDN10-24-100P is designed for installations that utilize the Full 8A capability of the Thick Cable system. Note – local codes may prohibit the use of the full capacity of the power supply.

Features

  • Power Factor Correction
  • SEMI F47 Sag Immunity
  • Class 1, Div 2 Hazardous Locations
  • DC OK Signal
  • Industrial grade design
    • Indefinite short-circuit, overvoltage and overtemperature protection
    • Rugged metal case and DIN connector
  • Narrow width on rail for space critical applications
  • User-friendly front panel
    • Large, rugged, accessible multiple connection screw terminations
    • Easy installation
  • High efficiency for cooler operation and less heat losses
  • High MTBF and reliability
  • High grade and low stress design components
  • No fans used or required
  • Five year warranty

Features (SDN4-24-100LP only)

  • Meets the requirements of NEC Class 2
  • No derating from -10°C to 60°C, operation to 70°C possible with linear derating to half power from 60°C to 70°C.

PDF Files

SDN DeviceNet Series Specifications



SDN DeviceNet Series

Catalog Number Output Current Output Voltage Output Power
SDN4-24-100LP 3.8A 24 (22.5 - 28.5 adj) VDC 92W
SDN10-24-100P 10A 24 (22.5 - 28.5 adj) VDC 240W
